IBAD System

We are making a company of trust with a unified heart.
We provide Optical Tech Products through Ion Beam Coating Systems.
The models are classified according to the functions and specifications of the product.

본문 메뉴

UNIVAC 2700

UNIVAC 2700 image 01
  • 2700 image 01
  • 2700 image 02
  • 2700 image 03

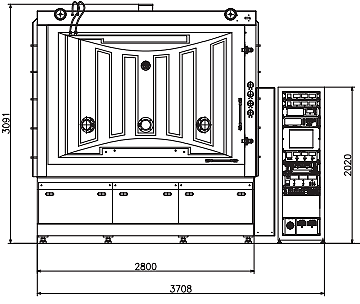

Front view drawing image
UNIVAC-2700 information
System Model UNIVAC-2700
Process Chamber Ø20500×H1750
Pumping System Diffusion 32”×2sets
Mechanical booster Pump 5,200㎥h-1
Oil Rotary Pump 840㎥h-1
Meissner Trap Polycold
Substrate Carrier Calotte Diameter 2,500mm
Substrate Heating Halogen Heater Up to 250℃
Evaporation Source Electron Beam Source 10kw
Thermal Source 5kw
Substrate Treatment Ion Source 4kw
Thin Film Thickness
Monitioring
Quartz Crystal Thickness Monitoring SQM
Optical Thickness Monitoring(optional) OPM
Utility Power 3ph 380/220V
Freequency AC 50/60Hz
Power 90kw(Max)
Water Pressure 2 ~ 4kgf/ ㎠
Air Pressure 5 ~ 6kgf/ ㎠
Floor Load Weight 9,000kgs(approx)

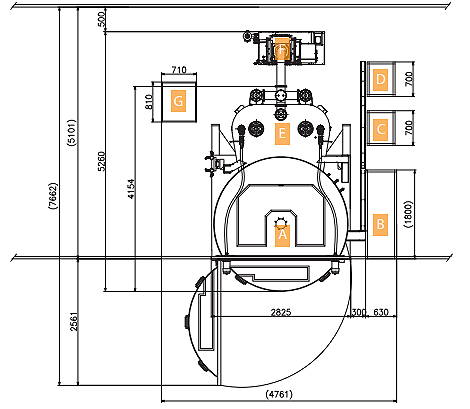

  1. AProcessing Chamber
  2. BSystem Controller
  3. CElectron beam power supply
  4. DIon beam power supply
  5. EHigh vacuum pump
  6. FLow vacuum pump
  7. GWater vapor cryocooler
Plane drawing image
