Home > PRODUCTS > IBAD SystemIBAD System
We are making a company of trust with a unified heart.
We provide Optical Tech Products through Ion Beam Coating Systems.
The models are classified according to the functions and specifications of the product.

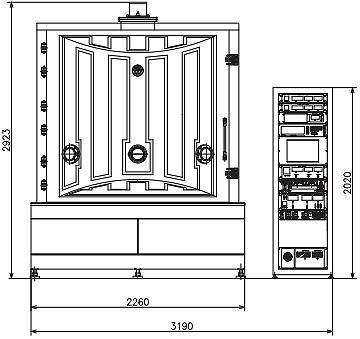

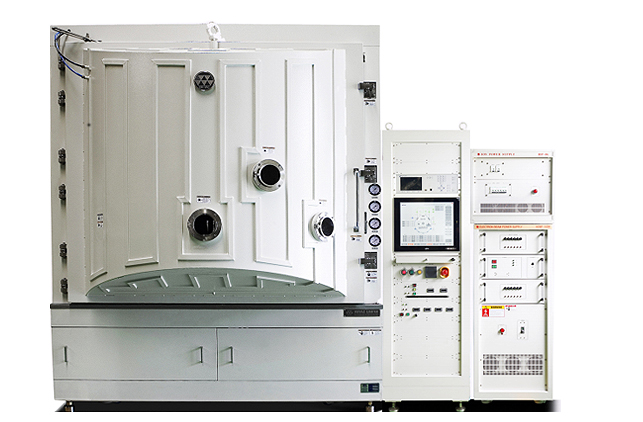

UNIVAC 2050
| System Model | UNIVAC-2050 | |
|---|---|---|
| Process Chamber | Ø2050×H1750 | |
| Pumping System | Diffusion | 28”×2sets |
| Mechanical booster Pump | 2,600㎥h-1 | |
| Oil Rotary Pump | 300㎥h-1 | |
| Meissner Trap | Polycold | |
| Substrate Carrier | Calotte Diameter | 2000mm |
| Substrate Heating | Halogen Heater | Up to 250℃ |
| Evaporation Source | Electron Beam Source | 10kw |
| Thermal Source | 5kw | |
| Substrate Treatment | Ion Source | 4kw |
| Thin Film Thickness Monitioring |
Quartz Crystal Thickness Monitoring | SQM |
| Optical Thickness Monitoring(optional) | OPM | |
| Utility | Power | 3ph 380/220V |
| Freequency | AC 50/60Hz | |
| Power | 90kw(Max) | |
| Water Pressure | 2 ~ 4kgf/ ㎠ | |
| Air Pressure | 5 ~ 6kgf/ ㎠ | |
| Floor Load Weight | 8,000kgs(approx) | |

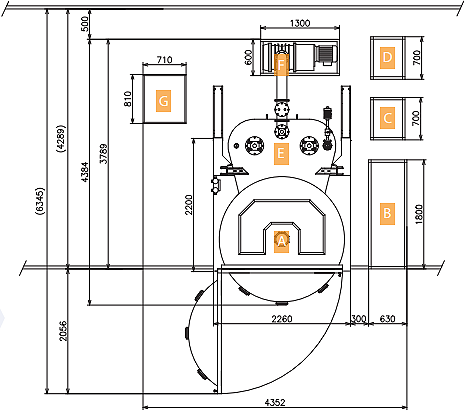

- AProcessing Chamber
- BSystem Controller
- CElectron beam power supply
- DIon beam power supply
- EHigh vacuum pump
- FLow vacuum pump
- GWater vapor cryocooler
